Perform Drag and Drop

Drag and drop is a common user interaction in web applications where an element is clicked, dragged, and then dropped onto another element. In Selenium WebDriver, the Actions class provides methods to simulate these actions.

How Drag and Drop Works in Selenium:

1. Locate the Source and Target Elements:

The source element is the element to be dragged.
The target element is where the source element will be dropped.

2. Using the Actions Class:

Selenium's Actions class provides a method called drag And Drop() to perform the drag-and-drop operation.
Another approach is to use click And Hold() on the source element, move To Element() to drag it to the target, and release() to drop it.

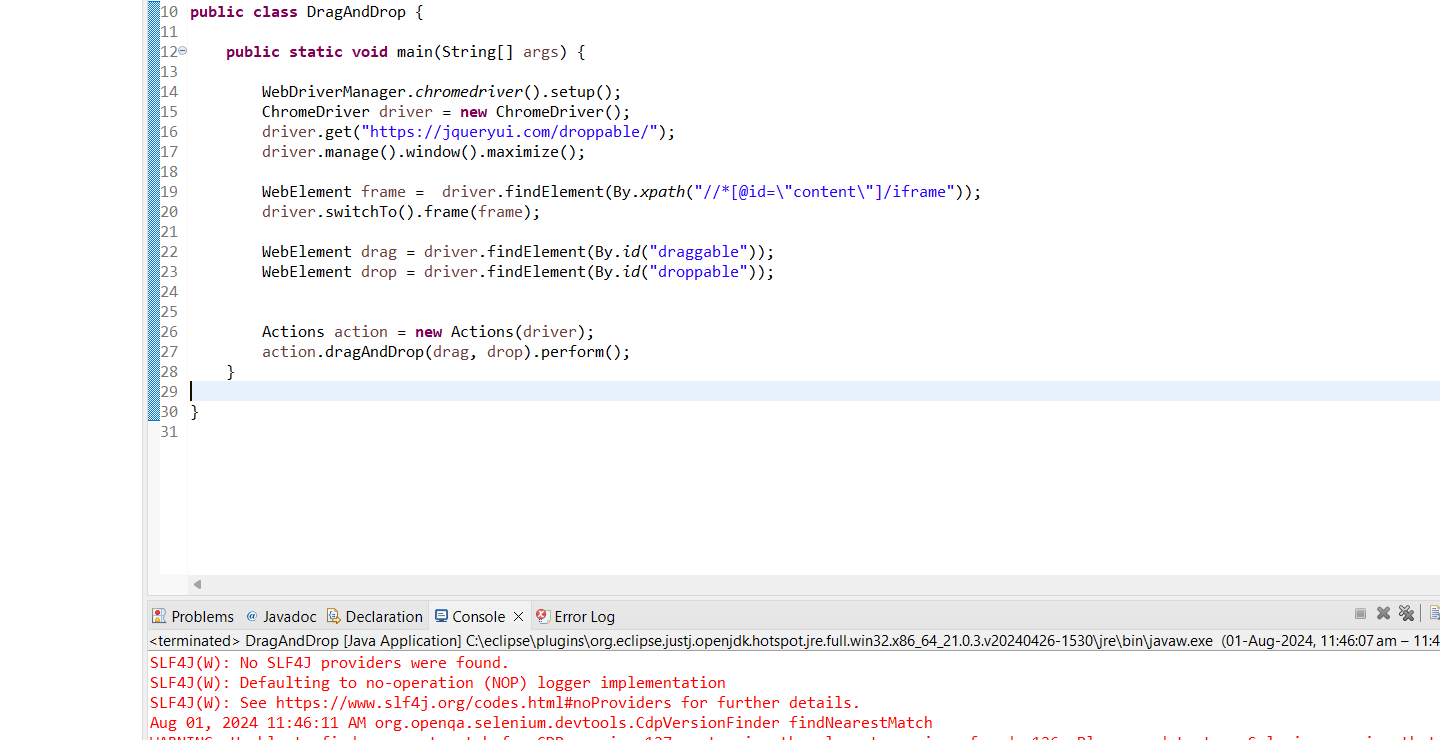

package asc;

import org.openqa.selenium.By;
import org.openqa.selenium.WebElement;
import org.openqa.selenium.chrome.ChromeDriver;
import org.openqa.selenium.interactions.Actions;

import io.github.bonigarcia.wdm.WebDriverManager;

public class DragAndDrop {

public static void main(String[] args) {

WebDriverManager.chromedriver().setup();
ChromeDriver driver = new ChromeDriver();
driver.get("https://jqueryui.com/droppable/");
driver.manage().window().maximize();

WebElement frame =  driver.findElement(By.xpath("//*[@id=\"content\"]/iframe"));
driver.switchTo().frame(frame);

WebElement drag = driver.findElement(By.id("draggable"));
WebElement drop = driver.findElement(By.id("droppable"));


Actions action = new Actions(driver);
action.dragAndDrop(drag, drop).perform();
}

}

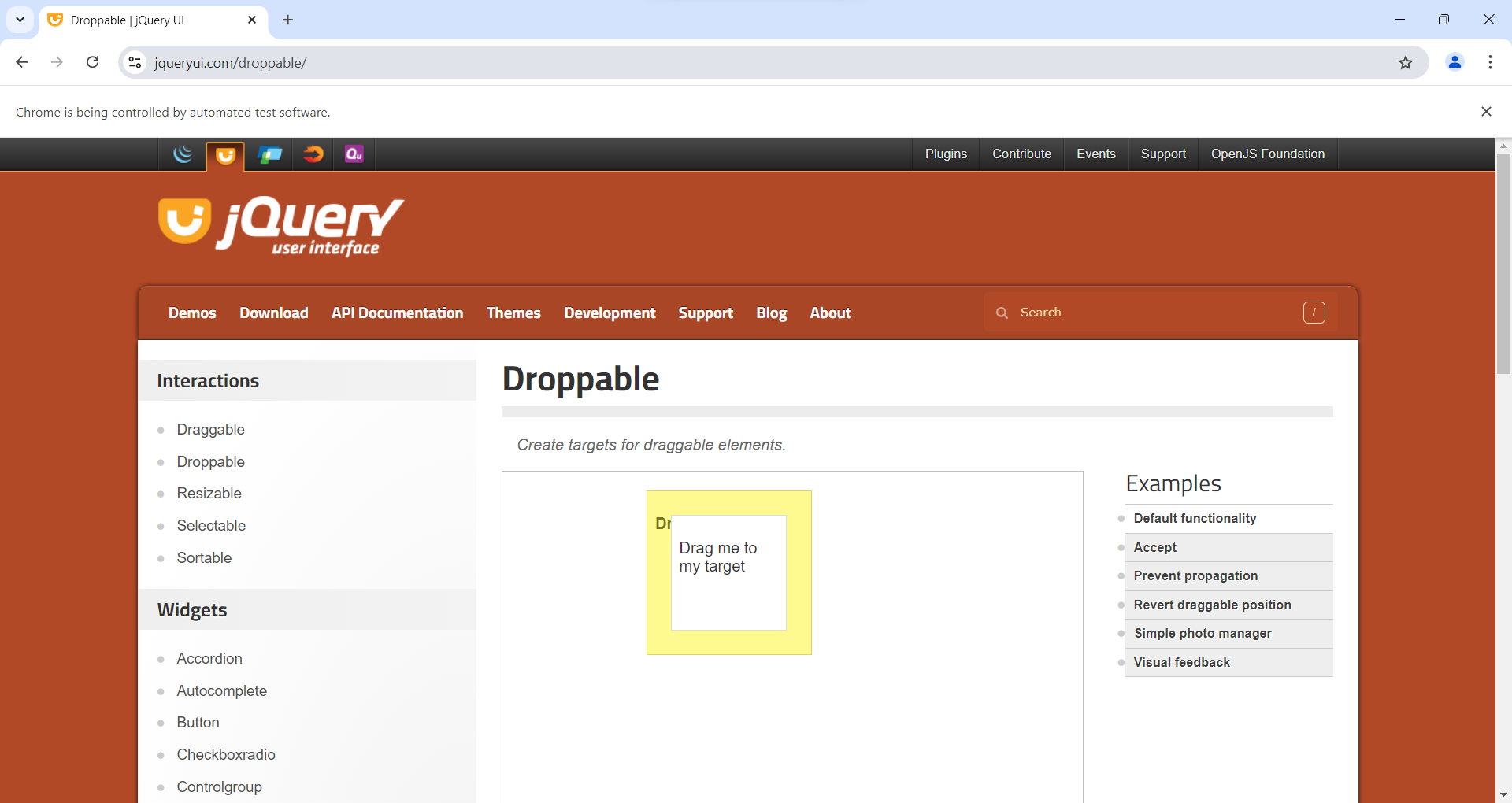

Output

Code Breakdown and Explanation:

1. Setup and Initialization:


WebDriverManager.chromedriver().setup();
ChromeDriver driver = new ChromeDriver();

```
WebDriverManager.chromedriver().setup();:
```
This line sets up the ChromeDriver, ensuring compatibility between the browser and the WebDriver.
```
new ChromeDriver();:
```
Initializes a new instance of the ChromeDriver, which controls the Chrome browser.

2. Navigating to the Web Page:


driver.get("https://jqueryui.com/droppable/");
driver.manage().window().maximize();

driver.get("https://jqueryui.com/droppable/");:

Navigates to the jQuery UI Droppable demo page.

```
driver.manage().window().maximize();:
```
Maximizes the browser window to ensure all elements are visible and interactable.

3. Handling Frames:


WebElement frame = driver.findElement(By.xpath("//*[@id=\"content\"]/iframe"));
driver.switchTo().frame(frame);

The drag-and-drop demo on the page is embedded within an iframe. To interact with elements inside this iframe, the WebDriver needs to switch its context to the iframe.

driver.findElement(By.xpath("//*[@id=\"content\"]/iframe"));:

Locates the iframe element using XPath.

```
driver.switchTo().frame(frame);:
```
Switches the WebDriver's context to the identified iframe, enabling interactions with elements inside it.

4. Locating the Source and Target Elements:


WebElement drag = driver.findElement(By.id("draggable"));
WebElement drop = driver.findElement(By.id("droppable"));

```
driver.findElement(By.id("draggable"));:
```
Locates the element to be dragged, identified by its ID.
```
driver.findElement(By.id("droppable"));:
```
Locates the target element where the source will be dropped, also identified by its ID.

5. Performing the Drag-and-Drop Action:


Actions action = new Actions(driver);
action.dragAndDrop(drag, drop).perform();

```
new Actions(driver);:
```
Creates an instance of the Actions class, which is used for simulating complex user interactions.
```
action.dragAndDrop(drag, drop).perform();:
```
Executes the drag-and-drop action, dragging the drag element and dropping it onto the drop element.

Key points

Handling iframes: Since the elements to be interacted with are inside an iframe, switching to the iframe is necessary before performing actions on those elements. Selenium requires this context switch to ensure the WebDriver interacts with the correct elements.
Using the Actions Class: The Actions class is crucial for simulating advanced user interactions like drag-and-drop, which involve more than simple clicks or keystrokes.
Locators: The code uses XPath and ID locators to find elements. It’s important to choose robust and stable locators that are less likely to change with updates to the webpage.

Considerations:

Synchronization: It's often necessary to ensure that the page and elements are fully loaded before interacting with them. Explicit waits (using WebDriverWait) are recommended over Thread .sleep() for better reliability.
Cross-Browser Testing: The behavior of drag-and-drop interactions can vary across different browsers. It’s important to test the functionality across the intended browser spectrum to ensure consistent behavior.
Iframe Context: Always switch back to the default content after performing actions within an iframe, especially if subsequent actions are outside of the iframe.
